Xirallic Alternative KT-F60-51-WR Sparks Red for Coatings

What KT-F60-51-WR Sparks Red Actually Does

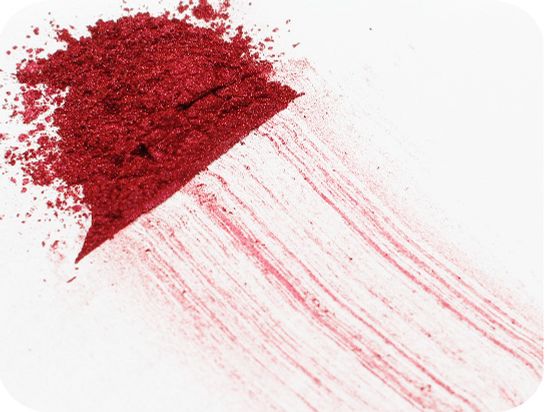

The XiallicSparks series exploits one structural advantage of aluminum oxide over mica: the Al₂O₃ crystal delivers higher refractive index contrast at each platelet face, which translates directly into sharper, more intense sparkle points rather than the softer, diffused sheen of standard pearlescent grades. KT-F60-51-WR expresses this as a deep, saturated red sparkle with strong facet definition — the visual impression is closer to crushed gemstone than to metallic flake or conventional pearl.

In our application lab, we describe the effect as "controlled brilliance": the 6–30 μm particle distribution is tight enough to give consistent sparkle density across a sprayed film, without the graininess you can get from coarser decorative glitters. The faceted geometry is what drives the depth of the red — it catches incident light across a range of angles rather than only at specular reflection.

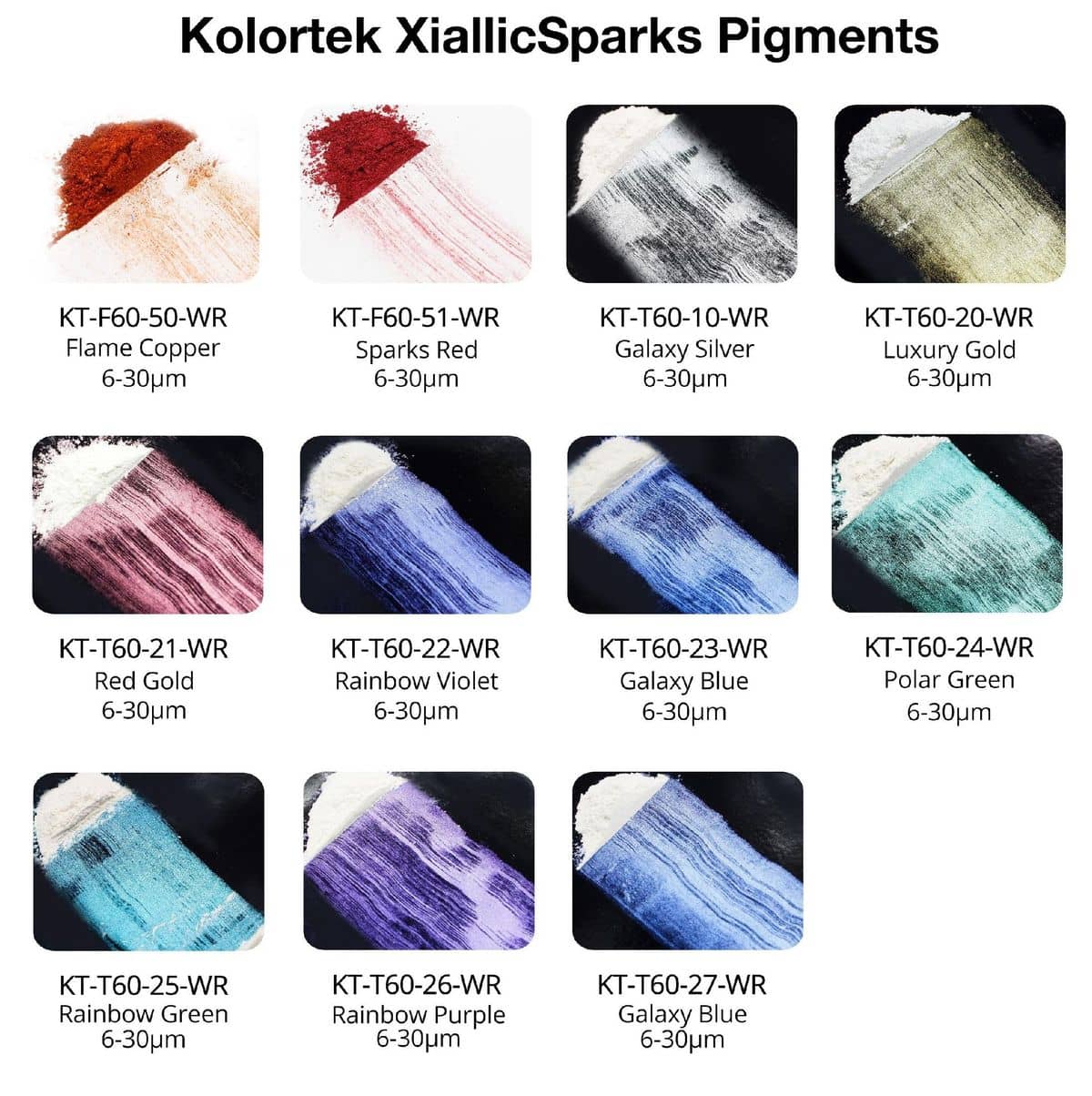

XiallicSparks Series — Available Grades

KT-F60-51-WR sits within the XiallicSparks lineup alongside eleven other Al₂O₃-based effect grades. All share the 6–30 μm particle size and the same substrate chemistry, so switching between colors in this series does not require reformulation of your dispersion protocol.

Technical Characteristics

Substrate and Optical Basis

The Al₂O₃ crystal substrate is what separates this class of red flake effect pigment from conventional mica-based pearl grades. Aluminum oxide crystals are optically cleaner and harder than mica flakes, which produces the sharp, point-source sparkle — rather than diffuse luster — that characterizes the Xirallic aesthetic. The coating layers applied over the Al₂O₃ core generate the Sparks Red interference color while the substrate geometry handles the brilliance.

Particle Size and Spray Compatibility

At 6–30 μm, this grade sits in the finer range for effect pigments, which has a direct practical implication: it is more spray-compatible than coarser decorative glitter grades, but formulators using conventional spray systems should still verify nozzle diameter against their specific equipment. In our experience, this particle distribution works well through most automotive spray lines without nozzle-clogging issues, provided the formulation viscosity is set correctly and the pigment is properly pre-dispersed.

One thing to note: specific temperature resistance ratings and lightfastness numeric values for KT-F60-51-WR are not published in our standard data sheet at this time. We recommend requesting a product-specific TDS and running your own weathering validation if the application involves prolonged exterior exposure — this is standard practice for any specialty effect pigment in automotive or facade use.

Chemical Stability and Heavy Metals

KT-F60-51-WR is manufactured under strict heavy-metal controls, with typical levels well below international regulatory thresholds. For solvent and waterborne systems, the safe operating pH range is 5–9; extended exposure outside this window can degrade the surface treatment on effect pigments generally. The product carries ISO 9001:2015 quality system certification. REACH compliance documentation — note that our current registration certificate covers fluorphlogopite-based grades specifically — requires product-specific confirmation for this Al₂O₃-based grade; contact us to obtain the relevant documentation for your compliance workflow.

Application Guide for Coatings Formulators

The primary design target for the XiallicSparks series is automotive coatings — specifically basecoat and effect-coat layers where high sparkle intensity and color depth are the visual objectives. That said, KT-F60-51-WR is equally applicable in industrial coatings, architectural and decorative coatings, coil coatings, wood coatings, and powder coating systems where the cure cycle is compatible with the pigment's thermal stability.

Compatible resin platforms include acrylic, alkyd, epoxy, polyurethane, nitrocellulose, and UV-curable systems. Both solvent-borne and waterborne formulations are supported, subject to the pH stability window noted above. Because this is a semi-transparent effect pigment, the color depth and sparkle intensity are strongly base-coat dependent: a white or light-colored base coat maximizes the Sparks Red effect; darker bases will suppress it. Some formulators blend KT-F60-51-WR with a small proportion of opaque pigment to achieve partial coverage while retaining the sparkle character.

Formulation and Processing

Loading Rate and Dispersion

Recommended loading is 1–20% by weight, depending on the target sparkle intensity. We advise starting at the lower end of that range and increasing incrementally — over-loading effect pigments in a coating film can cause particle crowding that actually reduces apparent brilliance. Pre-dispersing in a portion of the solvent or resin before adding to the full batch is the most reliable way to prevent agglomeration and ensure even particle distribution.

Mixing — What to Avoid

High-shear mixing equipment — sand mills, bead mills, high-speed dispersers — will fracture the Al₂O₃ crystal platelets and permanently destroy the sparkle effect. Add KT-F60-51-WR at the last stage of mixing under gentle, low-speed stirring only. This is non-negotiable for any Al₂O₃-based effect pigment; the crystal substrate is more sensitive to mechanical damage than standard mica.

Anti-Settling and Orientation

If settlement is observed during storage of the prepared coating, fumed silica or bentone anti-settling agents are effective at the concentrations typical for your resin system. Pre-dispersed paste forms of the XiallicSparks range are available from us for customers who prefer to skip the in-house dispersion step. For spray applications where platelet orientation is critical to the visual output, adjusting thinner type and amount, adding orientation aids, and allowing adequate flash time before force-drying are the standard troubleshooting levers.

Packaging

Standard packaging is 25 kg per drum or carton, with 300 kg per pallet for full pallet orders. MSDS/SDS documentation ships with all orders.

Positioning as a Xirallic Equivalent Manufacturer

Formulators evaluating Kolortek as a xirallic equivalent manufacturer should understand what "drop-in replacement" means in practice for this series: matching Al₂O₃ substrate chemistry, matching 6–30 μm particle size distribution, and equivalent dispersion behavior in common coating resin systems. These are the parameters that determine whether a substitution is genuinely transparent at the formulation level — not just a visual approximation.

The cost differential — factory-direct pricing at 20–40% below Merck Xirallic list prices — is a real and consistent advantage of sourcing directly from a manufacturer. Kolortek exports to over 100 countries and supports OEM/ODM and private-label arrangements for customers with volume requirements. Full documentation (TDS, COA, MSDS/SDS) is standard on every order, which matters for customers running supplier qualification processes.

Frequently Asked Questions

Is KT-F60-51-WR a true drop-in replacement for Merck Xirallic T60-51 WR Sparks Red?

Yes — KT-F60-51-WR matches the aluminum oxide (Al₂O₃) crystal substrate, the 6–30 μm particle size range, and the Sparks Red color effect of the corresponding Merck Xirallic grade. In practice, this means no reformulation of your dispersion protocol or basecoat stack is required when substituting. We recommend running a standard drawdown or spray-out panel comparison on your specific line before full production changeover, which is good practice for any pigment supplier switch.

What resin systems and coating types is this red flake effect pigment compatible with?

KT-F60-51-WR is compatible with acrylic, alkyd, epoxy, polyurethane, nitrocellulose, and UV-curable resin systems in both solvent-borne and waterborne formulations. The key constraint is pH: keep the coating system within pH 5–9 to protect the pigment's surface treatment. It is applicable in automotive, industrial, architectural, coil, wood, and powder coatings.

Can this pigment be processed through standard bead mills or high-speed dispersers?

No. Al₂O₃ crystal platelets are sensitive to mechanical fracture. Sand mills, bead mills, and high-speed dispersers will damage the particle geometry and eliminate the sparkle effect. Add KT-F60-51-WR at the last stage of mixing under gentle, low-speed stirring only, after pre-dispersing in a portion of the solvent or resin. This applies to the entire XiallicSparks series.

What documentation is available for supplier qualification and regulatory compliance?

Standard documentation includes TDS, COA, and MSDS/SDS, supplied with all orders. Kolortek holds ISO 9001:2015 certification. Heavy metal levels are controlled well below international regulatory thresholds. For REACH compliance, note that our current registration certificate specifically covers fluorphlogopite (synthetic mica) grades — product-specific REACH confirmation for this Al₂O₃-based grade should be requested directly from our technical team.

Contact our technical team to request a TDS, COA, or sample of KT-F60-51-WR for your formulation evaluation.
