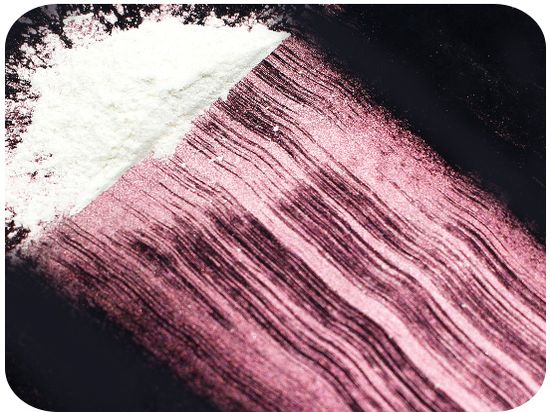

KT-T60-21-WR Radiant Red XiallicSparks Pigment

What Makes an Al₂O₃ Crystal Pigment Different from Mica Pearl

Most effect pigments in industrial use rely on natural or synthetic mica as a substrate. Mica works well — but its surface carries a degree of roughness, and its refractive index sits around 1.58. The alumina flake used in KT-T60-21-WR is a different animal. Al₂O₃ flakes are grown as near-perfect crystalline platelets: atomically smooth surfaces, extremely uniform thickness, and a refractive index of 1.76. Those physical differences translate directly into how light reflects off the coated surface.

Each flake behaves like a small, precisely ground mirror. When oriented flat in a basecoat, the result is a defined, faceted sparkle — what the automotive coatings world calls a "crystal effect" or "diamond-dust" appearance. Mica pearls scatter light more diffusely; alumina flakes concentrate it into sharp, high-contrast highlights. That distinction is why Xirallic®-type pigments became a separate product category rather than just a higher-quality mica pearl, and it is exactly what the XiallicSparks series replicates.

Technical Specifications — KT-T60-21-WR Radiant Red

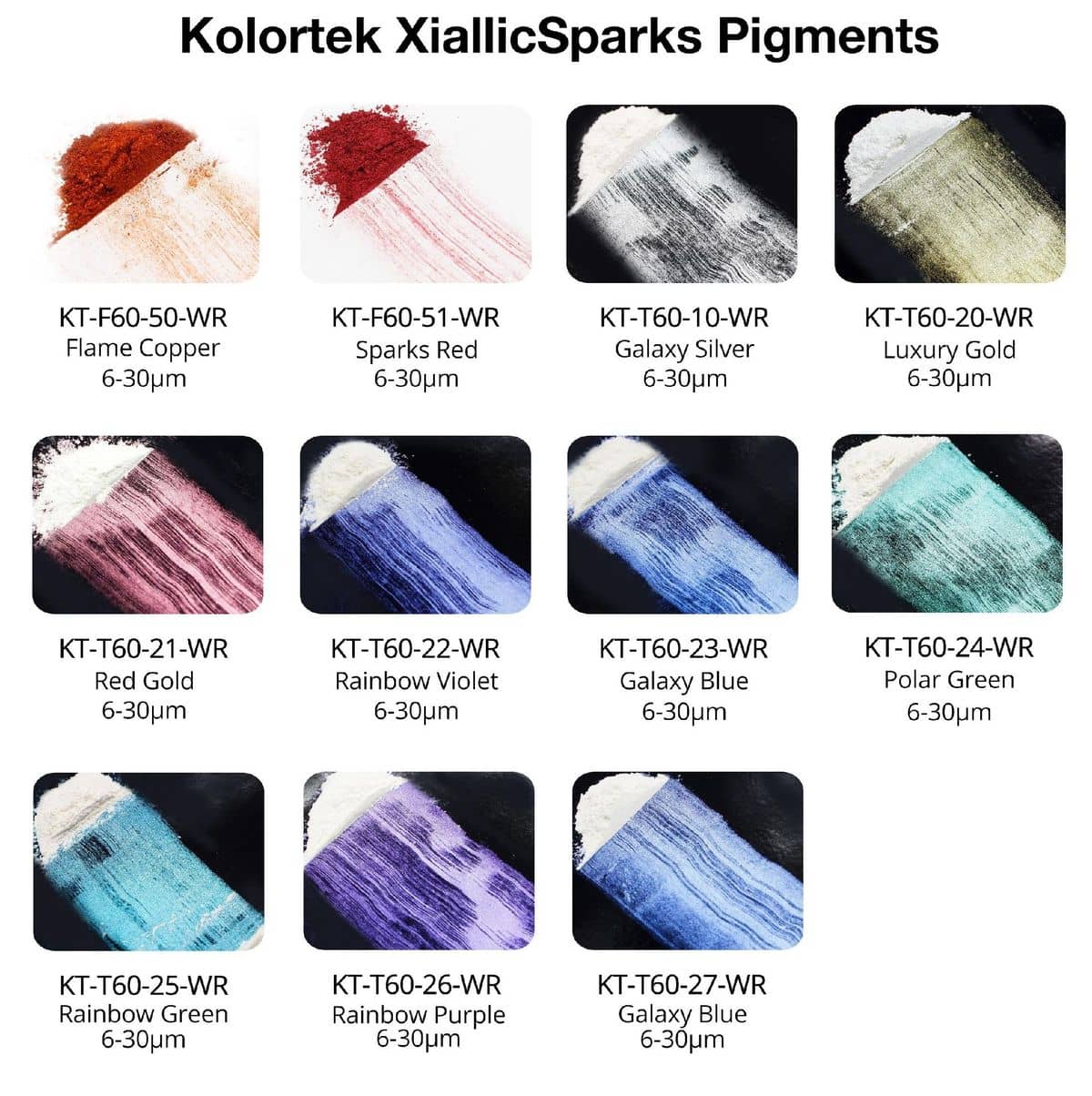

XiallicSparks Series — Available Grades

KT-T60-21-WR sits within Kolortek's XiallicSparks line, which covers the full palette of crystal-effect automotive colors. All grades share the same 6–30 μm particle size range and Al₂O₃ substrate. The table below lists the current series for reference when specifying multiple shades within one system.

Recommended Applications for This Automotive Red Crystal Pigment

XiallicSparks pigments are a specialized category. They are not general-purpose effect pigments, and we do not recommend them where a standard pearlescent from Kolortek's KT-100 through KT-9000 range would do the job at lower cost. The KT-T60-21-WR is engineered for contexts where the crystal-effect performance is specifically required and specified.

The primary home for this automotive red crystal pigment is OEM and refinish basecoat systems. It is also used in high-end industrial coatings where the crystal sparkle is a deliberate design specification — premium consumer electronics housings and luxury goods are examples from our customer base. What these applications share is a clearcoat architecture: the alumina flakes need a protective topcoat to perform at their best and to meet durability expectations.

• Automotive OEM basecoat/clearcoat systems
• Automotive refinish — premium collision repair and custom work
• High-end industrial coatings (consumer electronics, luxury goods)

One important boundary: XiallicSparks products are not recommended for cosmetics. They carry no face-safe certification, and the line was not developed for that application. Formulators needing a cosmetic-grade red effect pigment should look at other Kolortek series instead.

Formulation and Processing Guidelines

Dispersion

Al₂O₃ flakes are more friable than mica under mechanical stress. In our application lab, we see the most damage occur when formulators run XiallicSparks pigments through ball mills or high-shear recirculation loops — equipment that is perfectly acceptable for mica pearls but breaks alumina flake edges and degrades the crystal effect. The correct approach is to pre-disperse the pigment in a small portion of binder using a Cowles-type disperser at moderate speed, then fold that dispersion into the bulk coating. Do not re-circulate through high-shear pumps after that point.

Loading Levels and Basecoat Design

Typical loading in automotive basecoats runs 3–8% on total paint weight. The orientation of the flakes matters as much as the loading rate. Systems with slower solvent flash and good flow characteristics allow the alumina platelets to settle parallel to the substrate before the film locks in — that parallel orientation is what produces the sharp highlight intensity the effect is known for. Multiple thin coats produce more uniform sparkle than a single heavy application; one heavy wet coat tends to lock flakes in random orientations before they can settle.

Apply over a dark — typically black — basecoat. The contrast between the dark background and the bright red crystal flakes is where the visual depth of this effect comes from. A white or light-colored ground significantly reduces the perceived chroma and sparkle intensity.

Application Method and Clearcoat

Pneumatic spray and electrostatic spray are the standard delivery methods. Allow proper flash-off time between basecoat and clearcoat — rushing this step disrupts platelet alignment that has already been achieved. A high-gloss clearcoat both protects the pigment and optically amplifies the crystal sparkle by providing a smooth top surface through which the flakes are viewed. The product is thermally stable through standard automotive cure cycles (140–160 °C for 20–30 min), so no special low-temperature cure accommodation is needed.

KT-T60-21-WR vs. Merck Xirallic® T60-21 — Positioning

The XiallicSparks series was developed specifically as a radiant red Al₂O₃ pigment alternative to the Merck Xirallic® line, and KT-T60-21-WR is the direct shade match to Xirallic® T60-21. Both use an alumina flake substrate, both target the same automotive coating application window, and the shade mapping has been confirmed in cross-reference testing.

The practical case for evaluating KT-T60-21-WR is straightforward: formulators who have Xirallic® T60-21 in an existing specification can substitute it directly without redesigning the formula. The substrate chemistry, particle size range, and optical mechanism are the same. From a supply perspective, Kolortek manufactures and ships factory-direct — Merck Xirallic® is often sourced through distributor tiers, which adds lead time and pricing layers. We do not publish a fixed price differential for this specific grade, but the structural cost advantage of factory-direct procurement is real and consistent.

One honest note on scope: if a formulation uses a standard mica pearl and the specifier is simply looking for a red pearl, the XiallicSparks series is not the right answer — the cost structure is not designed for that use case. The standard Kolortek pearlescent range covers general decorative and industrial applications more economically. KT-T60-21-WR makes sense when the crystal effect is specifically what is required.

Quality and Compliance Notes

Kolortek operates under ISO 9001:2015 quality management covering production and sales of pigments and effect materials. For the XiallicSparks line specifically, no cosmetics-use certifications (EU Cosmetics Regulation, US FDA) are held or pursued — the line is out of scope for those regulatory frameworks by design. REACH status and other product-specific compliance documentation should be confirmed at the time of inquiry, as the company-level REACH registration covers fluorphlogopite (synthetic mica), which is a different substrate than the Al₂O₃ used here. An SDS is provided with all shipments.

Frequently Asked Questions

Is KT-T60-21-WR a true equivalent to Merck Xirallic® T60-21, or just a similar shade?

KT-T60-21-WR is a direct cross-reference to Merck Xirallic® T60-21 based on confirmed shade mapping. Both use an alumina (Al₂O₃) flake substrate at a 6–30 μm particle size and target the same automotive basecoat application. It is positioned as a 1:1 drop-in replacement when a formula specifies Xirallic® T60-21, without requiring changes to the coating formulation or process.

Why does the Al₂O₃ substrate produce a different effect than mica-based pearlescent pigments?

Alumina flakes have a refractive index of 1.76 versus approximately 1.58 for mica, and their surface is atomically smoother. Each flake acts as a small, precisely oriented mirror rather than a diffuse scatterer. The result is a sharp, faceted "crystal sparkle" effect — defined highlights with strong chroma — that mica pearls physically cannot replicate regardless of coating formulation.

Can KT-T60-21-WR be used in cosmetics or nail products?

No. The XiallicSparks series is not recommended for cosmetic applications. It does not carry face-safe certifications under EU Cosmetics Regulation or equivalent frameworks, and those approvals are outside the scope of this product line. For cosmetic-grade red effect pigments, other Kolortek series are the appropriate choice.

What loading rate and basecoat color are recommended for automotive use?

In automotive basecoat systems, KT-T60-21-WR is typically used at 3–8% on total paint weight. For maximum crystal sparkle intensity and chroma, apply over a black or dark contrasting basecoat — a light ground significantly reduces visual depth. Multiple thin spray passes produce more uniform platelet orientation than a single heavy coat. The pigment is stable through standard automotive cure at 140–160 °C for 20–30 minutes.

Contact our technical team to discuss formulation requirements or to request a sample of KT-T60-21-WR for evaluation in your specific coating system.
