How Thermochromic Pigments Change Color with Temperature in Industrial Applications

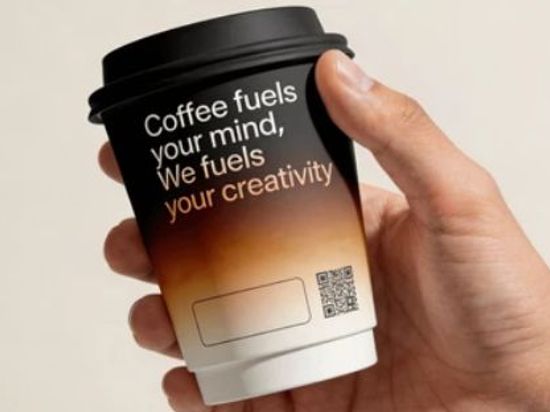

A batch of injection-molded cups comes off the line. They're bright red at room temperature. Pour hot coffee in, and they turn transparent, revealing a printed message underneath. That's not a coating trick or a printed effect—that's thermochromic pigment responding to a physical stimulus the way it's been engineered to.

Unlike most colorants that hold their hue regardless of external conditions, thermochromic pigments are designed to undergo reversible color transitions when crossing specific temperature thresholds. The mechanism isn't magic. It's chemistry that's been commercialized for about 40 years, but it's only in the last decade that formulation stability and cycle durability have reached the point where industrial deployment makes sense beyond promotional gimmicks.

The Core Mechanism: Microencapsulated Leuco Dyes

Modern industrial thermochromic pigments rely on a three-component system housed inside microcapsules, typically 3–10 μm in diameter. The system includes a leuco dye (the color former), a weak acid developer (typically a phenol derivative), and a solvent matrix that melts at the designed activation temperature.

Below the activation temperature, the solvent is solid. In this state, the leuco dye and the acid are in close proximity, forming a colored complex. When the temperature rises above the threshold—say, 31°C—the solvent melts. This separates the dye from the acid, breaking the complex, and the pigment loses its color. Cool it back down, the solvent resolidifies, the complex reforms, and the color returns.

That's the reversible part. The challenge is keeping that cycle stable over hundreds or thousands of transitions without the capsule wall failing, the solvent leaking, or the dye degrading.

Activation Temperatures and Transition Sharpness

Activation temperature—the point where color change with temperature occurs—is not infinitely tunable, but suppliers now offer a reasonable range. Common activation points include 16°C, 31°C, and 45°C, though some systems activate as low as -15°C or as high as 65°C.

The transition itself isn't instantaneous. Most commercial pigments exhibit a transition window of about 3–7°C. For example, a pigment rated at 31°C might start its color shift at 28°C and complete it by 34°C. That ramp matters in applications like beverage packaging, where you want a clear visual cue without needing precise thermal control.

In textile printing or craft applications, the slower transition can actually help—too sharp a change can look jarring. In temperature indicators for logistics or medical cold chain monitoring, you want it faster.

Two Behavioral Categories: Colored-to-Colorless vs. Colored-to-Colored

Colored-to-colorless pigments dominate industrial use. A red pigment at low temperature becomes transparent at high temperature. This allows the substrate color or an underlayer to show through, which is why you see them in drinkware (revealing a hidden graphic), security inks (showing authentication features), or interactive packaging.

Colored-to-colored pigments shift from one hue to another—black to red, purple to blue, green to yellow. The underlying chemistry is similar, but the formulation includes two leuco dye systems or a single system with a background colorant that becomes visible when the primary dye deactivates. These pigments are less common in functional applications and more common in decorative contexts: nail polish, toys, promotional items.

That said, color-to-color transitions are harder to control for color accuracy. If your application requires a specific final hue under ΔE tolerances, you're better off designing around a colored-to-colorless system with a controlled substrate.

Performance Considerations in Real-World Formulations

Temperature-sensitive pigments are not drop-in replacements for standard colorants. They impose constraints that have to be designed around, not ignored.

Processing Temperature Limits

The microcapsule wall will fail if you exceed its thermal ceiling during compounding, printing, or coating. Most industrial thermochromic pigments tolerate processing temperatures up to 200–230°C for brief periods (under 5 minutes), but prolonged exposure degrades the dye or ruptures the capsule. This rules them out for high-temperature powder coating or automotive topcoats cured at 140°C+ for extended times.

Water-based screen printing inks, UV-curable coatings, and low-temperature plastisol systems are safer bets. For injection molding, masterbatch dilution ratios and barrel temperatures need adjustment to keep the pigment below its failure point during residence time.

UV Stability and Outdoor Durability

Leuco dyes are not inherently UV-stable. Unprotected, they'll fade in direct sunlight within weeks. If the application involves outdoor exposure, you need a UV-blocking topcoat or a pigment grade that includes UV absorbers in the capsule formulation. Even then, expect reduced cycle life and eventual color drift.

Interior applications—textiles, packaging, consumer electronics—don't face the same degradation pressure, but fluorescent lighting and heat from enclosed spaces can still accelerate aging if the formulation isn't designed for it.

Chemical Compatibility

Solvents used in the carrier system (inks, coatings, resins) can interact with the microcapsule wall or leach through it, disrupting the internal chemistry. Strong solvents like MEK, toluene, or xylene are risky. Water-based systems, mild alcohols, and aliphatic hydrocarbons tend to be safer.

Plasticizers in flexible PVC or silicone formulations can also migrate into the capsule over time, lowering the activation temperature or destabilizing the color transition. Pre-testing compatibility in your actual formulation is non-negotiable.

Industrial Applications Where Thermochromic Pigments Actually Work

Let's be specific about where these pigments earn their cost premium and where they don't.

Food-contact applications require BPA-free formulations. Standard thermochromic pigments often use bisphenol A as the developer component. BPA-free alternatives exist—they use substituted phenols—but they cost 20–30% more and may have slightly less color intensity.

Formulation Guidelines and Loading Levels

Dosage depends on the desired color intensity and the medium. In water-based screen printing inks, 5–15% by weight is typical. Below 5%, the color is weak; above 15%, you risk poor film formation and adhesion issues. For plastisol inks, 8–12% works better due to the thicker film build.

In injection-molded plastics, 1–3% in a masterbatch diluted to 0.5–1% in the final part usually suffices. Higher loadings don't necessarily improve color—they just make the transition slower and less distinct.

Dispersion quality matters. Thermochromic pigments don't dissolve; they're suspended particulates. Poor dispersion leads to color streaking and inconsistent activation temperatures within the same part. High-shear mixing or triple-roll milling improves uniformity, but excessive shear can damage the microcapsules. It's a balance.

Color Range and What's Actually Available

You can get red, blue, green, yellow, purple, orange, and black in colored-to-colorless versions. The saturation isn't as high as you'd see with conventional organic pigments—think pastel to mid-tone intensity. If you need a deep, vibrant red that holds up under high color load, you're better off layering a standard pigment underneath and using a thermochromic yellow or blue as the temperature-reactive top layer.

Kolortek's product line includes activation temperatures from 16°C to 45°C across multiple colors, with BPA-free versions available in the 30–32°C range for skin-contact and food-contact applications. Particle size is typically 1–10 μm, which works well in most coating and printing systems without clogging standard spray or screen meshes.

Durability and Cycle Life: What to Expect

Thermochromic pigments are not infinitely reversible. Each heating and cooling cycle stresses the microcapsule and the internal chemistry. Over time, the color weakens, the transition temperature drifts, or the pigment stops responding altogether.

In controlled indoor conditions with moderate cycling (e.g., a temperature indicator on a battery pack), expect 500–1,000 cycles before noticeable degradation. In harsher environments—dishwashing, repeated laundering, outdoor temperature swings—you'll see significant fade after 30–100 cycles.

This isn't a defect. It's the nature of the technology. If your application demands longer life, consider using the pigment as a single-use indicator or designing the product for replacement rather than indefinite reuse.

Testing and Quality Control During Scale-Up

When moving from lab trials to production, a few issues tend to surface:

• Batch-to-batch color variation. The leuco dye concentration inside the capsule isn't always perfectly consistent between production lots. Expect slight hue shifts, especially in mid-tones. Standardize your color under a specific temperature and light source.
• Activation temperature drift. If your production line sits in a hot warehouse, the pigment might partially activate before application. Store raw pigment at <25°C and keep mixed inks/coatings under the activation threshold until use.
• Incomplete color recovery. If the pigment doesn't return to full color after cooling, it's often due to overheating during processing or incompatible solvents leaching into the capsule. Re-verify your processing temps and solvent list.

Run accelerated aging tests—thermal cycling between the activation temperature and a lower baseline (e.g., 10°C to 45°C, 100 cycles)—to predict field performance before committing to full production.

Where Thermochromic Pigments Don't Belong

These pigments are not suitable for every coating or plastic application. High-performance automotive finishes, outdoor architectural coatings, and high-temperature industrial enamels are poor fits. The pigment won't survive the cure schedule, and even if it does, UV exposure and temperature cycling will degrade it rapidly.

They're also not a replacement for color stability. If your spec calls for consistent color under varying temperatures, thermochromic pigments are literally designed to do the opposite.

Practical Tips for Formulators

• Always test compatibility in your actual resin or binder system before scaling. Supplier data sheets are guidelines, not guarantees for your specific formulation.
• If you're layering thermochromic ink over a substrate, choose an underlayer color that enhances the effect. A white base makes the color disappearance more dramatic; a black base creates a high-contrast reveal.
• For textile applications, add a UV topcoat or wash-resistant binder to extend cycle life. It won't prevent degradation, but it can double the useful lifespan.
• Keep unused pigment sealed and cool. Once the container is opened and exposed to humidity, shelf life drops from 12 months to 6 months or less.
• If you need a custom activation temperature, ask early. Some suppliers can tune formulations to non-standard thresholds, but it usually requires a minimum order quantity and lead time.

Working with Kolortek's Thermochromic Pigment Range

Kolortek offers thermochromic pigments across multiple activation temperatures, particle sizes from 1–10 μm, and color options including red, green, blue, yellow, purple, orange, and black. BPA-free food-grade variants are available for applications requiring skin contact or food-contact compliance. The product line covers both colored-to-colorless and colored-to-colored transitions, with most pigments optimized for water-based inks, low-temperature plastisols, and plastic compounding.

If your formulation involves non-standard solvents, high-temperature processing, or specific regulatory requirements, technical support can help navigate compatibility issues and recommend appropriate grades. Sample quantities are available for lab trials before committing to production volumes.

For technical data sheets, compatibility testing, or sample requests, contact the Kolortek technical team at contact@kolortek.com.
